Shockproof access floor systems |
|
| |
 |
|
EC3000-01
Concentration load Depression / 3000N/m
Central load depression under 4 mm /3,000N
*Loading property 3000N/m
*Size: 500*500 mm
*Panel Thickness: 23.5 mm
*Weight:5 kg
|
|
|
|
|
|
|
 |
| |
The elevated flooring with a green environmentally friendly design
*100% Recyclable and reusable.
* anti-seismic, corrosion proof
Suitable place: commercial offices, automated offices, intelligent buildings, older buildings due for refurnishing,
banks and securities brokerages
Product specification
Metal Alloy Elevated Flooring EC3000/ EC5000
|
Dimensions
|
500 x 500 x 23.5 mm (CxWxH) / 500 x 500 x 24 mm (CxWxH)
|
|
Material
|
Steel material by China Steel Corp. + hydrochloric phosphate membrane coating + static powder lamination coating
|
|
Filler
|
The hollow board design
|
|
Weight
|
approx. 5 kg/pc. / approx. 6.4 kg/pc.
|
|
Weight load types
|
The 300 model satisfactorily compiled with JIS-A1450 testing.
|
|
Shockproof design
|
One-point mounting that holds down four boards, with shockproof index rated at 1.0G
|
|
Surface material
|
Rear affixed implementation method; square carpets, vinyl floor tiles, quartz glossy tiles, etc.
|
Structure specification
* JIS A 1450-2003 testing methods
|
Testing Method
|
Testing
Item
|
Item
|
unit
|
JAFA Spec
|
|
Size
|
|
Model
|
|
3000N
|
5000N
|
|
Length
|
|
mm
|
+ _ 0.5
|
+ _ 0.5
|
|
High
|
|
mm
|
+_ 0.25
|
+_ 0.25
|
|
Right angle
|
|
mm
|
+_ 0.5
|
+_ 0.5
|
|
Flatness angle
|
Central Edge
|
mm
|
+_ 0.3
|
+_ 0.3
|
|
Diagonal
|
mm
|
+_ 0.75
|
+_ 0.75
|
|
Loading
test
|
|
Model
|
|
3000N
|
5000N
|
|
Concentration
load
|
Depression
|
mm
|
<4.0
|
<4.0
|
|
Loading value
|
N
|
3,000
|
5,000
|
|
Ultimate loading
|
N
|
>=6,000
|
>=10,000
|
|
Central Edge
load
|
Depression
|
mm
|
<4.0
|
<4.0
|
|
Loading value
|
N
|
3,000
|
5,000
|
|
Ultimate loading
|
N
|
>=6,000
|
>=10,000
|
|
Impact loading test
|
Sand bag
|
Ultimate loading
|
N
|
>=6,000
|
>=10,000
|
|
Metal ellipsoid
|
Ultimate loading
|
N
|
>=6,000
|
>=10,000
|
|
Flammability
|
Non-combustible
|
*1000N around 102 kgf * JAFA : Japan Access Floor Association
|
|
|
|
| |
 |
|
EC 5000
Concentration load Depression / 5000N/m
Central load depression under 4 mm /5,000N
* Loading property 5000N/m
*Size: 500*500 mm
* Panel Thickness: 24 mm
*Weight: 6.4kg
|
|
|
|
|
|
|
|
| |
The elevated flooring with a green environmentally friendly design
*100% Recyclable and reusable.
* anti-seismic, corrosion proof
Suitable place: commercial offices, automated offices, intelligent buildings, older buildings due for refurnishing,
banks and securities brokerages
Product specification
Metal Alloy Elevated Flooring EC3000/ EC500
|
Dimensions
|
500 x 500 x 23.5 mm (CxWxH) / 500 x 500 x 24 mm (CxWxH)
|
|
Material
|
Steel material by China Steel Corp. + hydrochloric phosphate membrane coating + static powder lamination coating
|
|
Filler
|
The hollow board design
|
|
Weight
|
approx. 5 kg/pc. / approx. 6.4 kg/pc.
|
|
Weight load types
|
The 300 model satisfactorily compiled with JIS-A1450 testing.
|
|
Shockproof design
|
One-point mounting that holds down four boards, with shockproof index rated at 1.0G
|
|
Surface material
|
Rear affixed implementation method; square carpets, vinyl floor tiles, quartz glossy tiles, etc.
|
Structure specification
* JIS A 1450-2003 testing methods
|
Testing Method
|
Testing
Item
|
Item
|
unit
|
JAFA Spec
|
|
Size
|
|
Model
|
|
3000N
|
5000N
|
|
Length
|
|
mm
|
+ _ 0.5
|
+ _ 0.5
|
|
High
|
|
mm
|
+_ 0.25
|
+_ 0.25
|
|
Right angle
|
|
mm
|
+_ 0.5
|
+_ 0.5
|
|
Flatness angle
|
Central Edge
|
mm
|
+_ 0.3
|
+_ 0.3
|
|
Diagonal
|
mm
|
+_ 0.75
|
+_ 0.75
|
|
Loading
test
|
|
Model
|
|
3000N
|
5000N
|
|
Concentration
load
|
Depression
|
mm
|
<4.0
|
<4.0
|
|
Loading value
|
N
|
3,000
|
5,000
|
|
Ultimate loading
|
N
|
>=6,000
|
>=10,000
|
|
Central Edge
load
|
Depression
|
mm
|
<4.0
|
<4.0
|
|
Loading value
|
N
|
3,000
|
5,000
|
|
Ultimate loading
|
N
|
>=6,000
|
>=10,000
|
|
Impact loading test
|
Sand bag
|
Ultimate loading
|
N
|
>=6,000
|
>=10,000
|
|
Metal ellipsoid
|
Ultimate loading
|
N
|
>=6,000
|
>=10,000
|
|
Flammability
|
Non-combustible
|
*1000N around 102 kgf * JAFA : Japan Access Floor Association
Feature:
- Product line of EC3000 and EC5000 are green building materials 100% recyclable and 100 % reusable.
- Flexibility-Access floor system is an excellent choice for working place flexibility. When work with compartment wall panels, access floor system allows your office to change along with you needs.
- Non-combustible
- Cost effective- ABOMB access floor system could meet with all high-end requiring budgets.
|
|
|
|
| |
 |
|
EC5000-01
Concentration load Depression / 5000N/m
Central load depression under 4 mm /5,000N
* Loading property 5000N/m
*Size: 500*500 mm
* Panel Thickness: 24 mm
*Weight: 6.4kg
|
|
|
|
|
|
|
|
| |
The elevated flooring with a green environmentally friendly design
*100% Recyclable and reusable.
* Anti-seismic, corrosion proof
* Suitable place: commercial offices, automated offices, intelligent buildings, older buildings due for refurnishing, banks and securities brokerages.
Product specification
Metal Alloy Elevated Flooring EC3000/ EC5000
|
Dimensions
|
500 x 500 x 23.5 mm (CxWxH) / 500 x 500 x 24 mm (CxWxH)
|
|
Material
|
Steel material by China Steel Corp. + hydrochloric phosphate membrane coating + static powder lamination coating
|
|
Filler
|
The hollow board design
|
|
Weight
|
approx. 5 kg/pc. / approx. 6.4 kg/pc.
|
|
Weight load types
|
The 300 model satisfactorily compiled with JIS-A1450 testing.
|
|
Shockproof design
|
One-point mounting that holds down four boards, with shockproof index rated at 1.0G
|
|
Surface material
|
Rear affixed implementation method; square carpets, vinyl floor tiles, quartz glossy tiles, etc.
|
Structure specification
* JIS A 1450-2003 testing methods
|
Testing Method
|
Testing
Item
|
Item
|
unit
|
JAFA Spec
|
|
Size
|
|
Model
|
|
3000N
|
5000N
|
|
Length
|
|
mm
|
+ _ 0.5
|
+ _ 0.5
|
|
High
|
|
mm
|
+_ 0.25
|
+_ 0.25
|
|
Right angle
|
|
mm
|
+_ 0.5
|
+_ 0.5
|
|
Flatness angle
|
Central Edge
|
mm
|
+_ 0.3
|
+_ 0.3
|
|
Diagonal
|
mm
|
+_ 0.75
|
+_ 0.75
|
|
Loading
test
|
|
Model
|
|
3000N
|
5000N
|
|
Concentration
load
|
Depression
|
mm
|
<4.0
|
<4.0
|
|
Loading value
|
N
|
3,000
|
5,000
|
|
Ultimate loading
|
N
|
>=6,000
|
>=10,000
|
|
Central Edge
load
|
Depression
|
mm
|
<4.0
|
<4.0
|
|
Loading value
|
N
|
3,000
|
5,000
|
|
Ultimate loading
|
N
|
>=6,000
|
>=10,000
|
|
Impact loading test
|
Sand bag
|
Ultimate loading
|
N
|
>=6,000
|
>=10,000
|
|
Metal ellipsoid
|
Ultimate loading
|
N
|
>=6,000
|
>=10,000
|
|
Flammability
|
Non-combustible
|
*1000N around 102 kgf * JAFA : Japan Access Floor Association
|
|
|
|
| |
 |
|

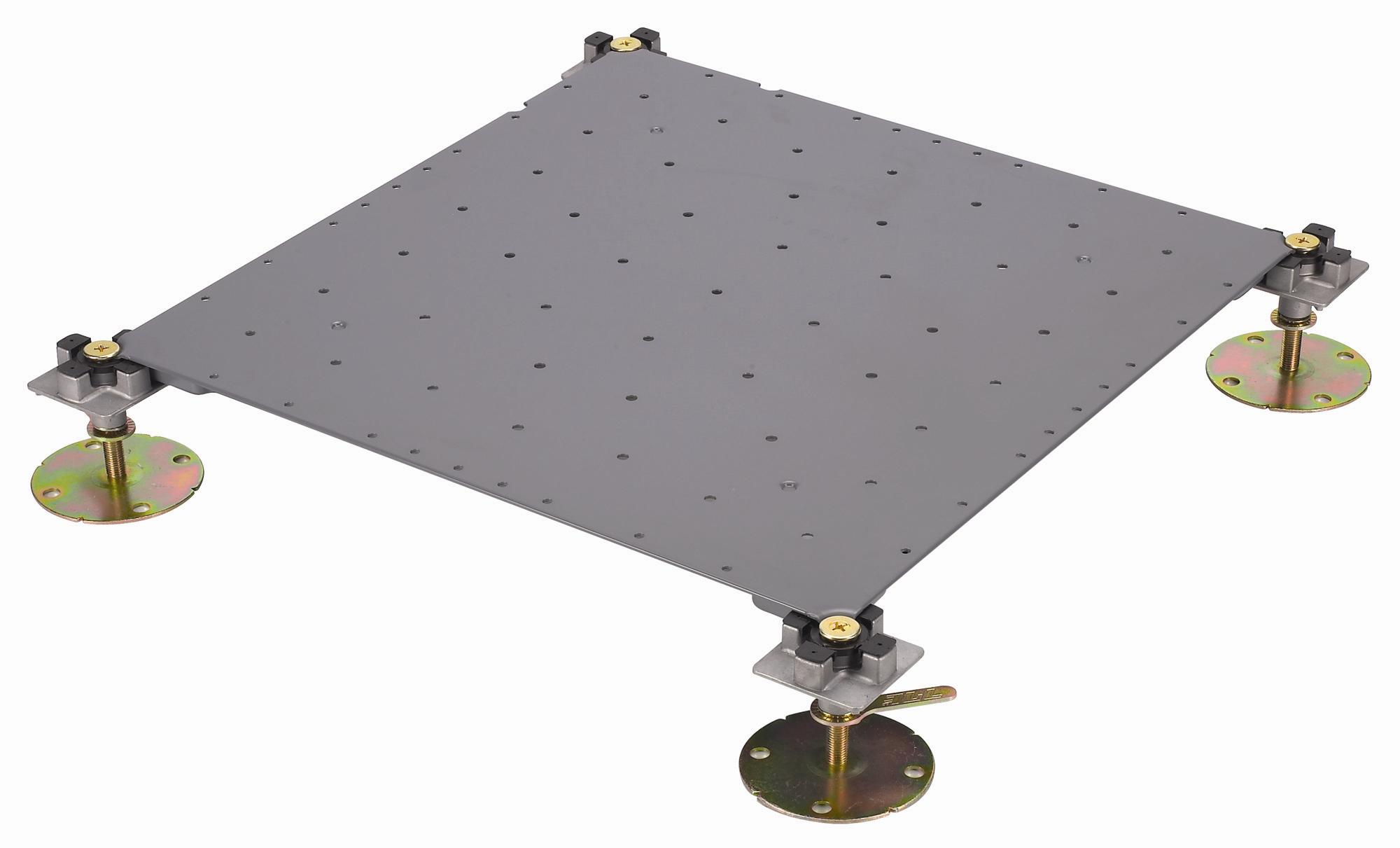

FK-3000
*Material: All Steel with perforate infilled foam Cement.
*Surface: Static powder coated for Anti-corrosion,Anti-rust
*Special design: Shockproof afford seismic parameter 1G, Fire-resistant
*Compliance: CNS certification, SGS certification.
*Application: Intelligent Building,Data center.
|
|
|
|
|
|
|
|
| |
The elevated flooring with a green environmentally friendly design
*100% Recyclable and reusable.
* anti-seismic, corrosion proof
Suitable place: commercial offices, automated offices, intelligent buildings, older buildings due for refurnishing,
banks and securities brokerages
Product specification
Metal Alloy Elevated Flooring EC3000/ EC5000
|
Dimensions
|
500 x 500 x 23.5 mm (CxWxH) / 500 x 500 x 24 mm (CxWxH)
|
|
Material
|
Steel material by China Steel Corp. + hydrochloric phosphate membrane coating + static powder lamination coating
|
|
Filler
|
The hollow board design
|
|
Weight
|
approx. 5 kg/pc. / approx. 6.4 kg/pc.
|
|
Weight load types
|
The 300 model satisfactorily compiled with JIS-A1450 testing.
|
|
Shockproof design
|
One-point mounting that holds down four boards, with shockproof index rated at 1.0G
|
|
Surface material
|
Rear affixed implementation method; square carpets, vinyl floor tiles, quartz glossy tiles, etc.
|
Structure specification
* JIS A 1450-2003 testing methods
|
Testing Method
|
Testing
Item
|
Item
|
unit
|
JAFA Spec
|
|
Size
|
|
Model
|
|
3000N
|
5000N
|
|
Length
|
|
mm
|
+ _ 0.5
|
+ _ 0.5
|
|
High
|
|
mm
|
+_ 0.25
|
+_ 0.25
|
|
Right angle
|
|
mm
|
+_ 0.5
|
+_ 0.5
|
|
Flatness angle
|
Central Edge
|
mm
|
+_ 0.3
|
+_ 0.3
|
|
Diagonal
|
mm
|
+_ 0.75
|
+_ 0.75
|
|
Loading
test
|
|
Model
|
|
3000N
|
5000N
|
|
Concentration
load
|
Depression
|
mm
|
<4.0
|
<4.0
|
|
Loading value
|
N
|
3,000
|
5,000
|
|
Ultimate loading
|
N
|
>=6,000
|
>=10,000
|
|
Central Edge
load
|
Depression
|
mm
|
<4.0
|
<4.0
|
|
Loading value
|
N
|
3,000
|
5,000
|
|
Ultimate loading
|
N
|
>=6,000
|
>=10,000
|
|
Impact loading test
|
Sand bag
|
Ultimate loading
|
N
|
>=6,000
|
>=10,000
|
|
Metal ellipsoid
|
Ultimate loading
|
N
|
>=6,000
|
>=10,000
|
|
Flammability
|
Non-combustible
|
*1000N around 102 kgf * JAFA : Japan Access Floor Association
Feature:
- Product line of EC3000 and EC5000 are green building materials 100% recyclable and 100 % reusable.
- Flexibility-Access floor system is an excellent choice for working place flexibility. When work with compartment wall panels, access floor system allows your office to change along with you needs.
- Non-combustible
- Cost effective- ABOMB access floor system could meet with all high-end requiring budgets
|
|
|
 |
 |
|
|
